Rigid Flex PCBs

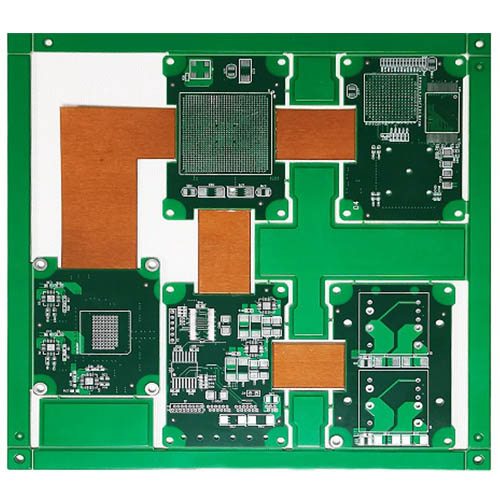

8-layer 1-stage HDI rigid-flex board

8-layer 1-stage HDI rigid-flex board

Name: 8-layer 1-stage HDI rigid-flex board

Plate: NPG-170

Plate thickness: 1.2 mm

Layers: 8 layers

Minimum line width/line spacing: 3/3 mil

Finished copper thickness: inner layer 0.5OZ, outer layer 1OZ

Acceptance Criteria: IPC6012 CLASS Level 2

Surface Technology: Immersion Gold

Dielectric constant: 4.2

Loss factor: 0.010

Use: medical equipment

10-layer 2-stage HDI rigid-flex board

10-layer 2-stage HDI rigid-flex board

Name: 10-layer 2-stage HDI rigid-flex board

Plate: Taiguang EM-888S

Plate thickness: 1.0 mm

Layers: 10 layers

Minimum line width/line spacing: 4/4mil

Finished copper thickness: inner layer 0.5OZ, outer layer 1OZ

Acceptance Criteria: IPC6012 CLASS Level 3

Surface Technology: Immersion Gold

Dielectric constant: 3.8

Loss factor: 0.0055

Use: security monitoring equipment

8-layer 2-stage HDI rigid-flex board

8-layer 2-stage HDI rigid-flex board

Name: 8-layer 2-stage HDI rigid-flex board

Layers: 8L

Structure: 3F+5R (8-layer 2-level HDI)

Sheet Type: PI, PET, PEN

Minimum hole: 0.1mm

PI thickness: 0.5mil-2mil

Cu Thickness: 1/3oz-2oz

Minimum line width/line spacing: 0.1/0.1mm;

NPTH Finished Aperture Tolerance: ±1mil(±0.025mm)

PTH Finished Aperture Tolerance: ±2mil(±0.050mm)

Finished plate thickness tolerance: ±0.01mm

Minimum line width/line gap: 0.05/0.05mm

Application field: High-end precision industrial sensor control board

10-layer 2-stage HDI rigid-flex board

10-layer 2-stage HDI rigid-flex board

Name: 10-layer 2-stage HDI rigid-flex board

Plate: Taiguang EM-888S

Plate thickness: 1.0 mm

Layers: 10 layers

Minimum line width/line spacing: 4/4mil

Finished copper thickness: inner layer 0.5OZ, outer layer 1OZ

Acceptance Criteria: IPC6012 CLASS Level 3

Surface Technology: Immersion Gold

Dielectric constant: 3.8

Loss factor: 0.0055

Use: security monitoring equipment

8-layer rigid-flex PCB board

8-layer rigid-flex PCB board

Name: 8-layer rigid-flex PCB board

Layers: 8L

Plate thickness: 1.45mm

Minimum aperture: 0.25mm

Minimum line width/line spacing: 5/3.6mil

Inner layer copper thickness: HOZ

Outer copper thickness: 1OZ

Surface treatment: chemical gold ENIG

Minimum distance from hole to line: 0.25mm

Application field: consumer electronics

8L rigid-flex board

8L rigid-flex board

Name: 8L rigid-flex board

Layers: 8L

Plate thickness: 1.45mm

Minimum aperture: 0.25mm

Minimum line width/line spacing: 5/3.6mil

Inner layer copper thickness: HOZ

Outer copper thickness: 1OZ

Surface treatment: chemical gold ENIG

Minimum distance from hole to line: 0.25mm

Application field: consumer electronics

Three-layer black oil rigid-flex board

Three-layer black oil rigid-flex board

Name: Three-layer black oil soft and hard board

Layers: 3L

Structure: 1R+1R+1R

Soft board thickness: 0.1MM

Hard board thickness: 0.6MM

Copper thickness: 1OZ

Minimum line width/line spacing: 4mil/4mil

Process difficulties: black solder mask yellow cover film, immersion gold surface treatment.

12-layer rigid-flex board

12-layer rigid-flex board

Name: 12-layer rigid-flex board

Layers: 12L

Structure: 5R+2F+5R

Plate thickness: 1.6mm

Outer copper thickness: 1 OZ

Inner copper thickness: 1 OZ

Minimum aperture: 0.25mm

Minimum line width/line spacing: 3.5mil

Surface Treatment: Immersion Gold

Product use: process controller

Technological difficulties: The flexible and rigid board is a 12-layer high multi-layer structure, DuPont AP9141R high-performance flexible board

12-layer Rigid Flex PCBs

12-layer Rigid Flex PCBs

Name: 12-layer Rigid Flex PCBs

Layers: 12L

Structure: 4R+4F+4R

Plate thickness: 1.8mm

Outer copper thickness: 1 OZ

Inner copper thickness: 1 OZ

Minimum aperture: 0.3mm

Minimum line width/line spacing: 4mil

Surface Treatment: Immersion Gold

Product use: intelligent robot

Process difficulty: high multi-layer Rigid Flex PCBs

Four-layer rigid-flex board

Four-layer rigid-flex board

Name: Four-layer rigid-flex board

Structure: 1R+2F+1R

Layers: 4L

Plate thickness: 0.55mm

Outer copper thickness 1 OZ

Inner layer copper thickness H OZ

Minimum aperture: 0.2mm

Minimum line width/line spacing: 3mil

Surface Treatment: Immersion Gold

Product use: Leica camera

Process difficulties: strict impedance matching requirements

TWS Earphone Rigid Flex PCBs

TWS Earphone Rigid Flex PCBs

Name: TWS Earphone Rigid Flex PCBs

Layers: 6L

Structure: 2R+2F+2R (HDI structure)

Plate thickness: 1.0mm

Outer copper thickness: 1 OZ

Inner copper thickness: 1 OZ

Minimum aperture: 0.2mm

Minimum line width/line spacing: 3mil

Surface Treatment: Immersion Gold

Product use: TWS bluetooth headset

Process difficulty: The Rigid Flex PCBs are 1st-order HDI structure Rigid Flex PCBs

PCB Drilling machine

PCB Drilling machine

PCB pattern plating line

PCB pattern plating line

PCB solder mask expose machine

PCB solder mask expose machine

PCB pattern expose machine

PCB pattern expose machine

Strip film etching line

Strip film etching line

Solder mask screen silk print machine

Solder mask screen silk print machine

Solder mask scrubbing line

Solder mask scrubbing line

PCB Flying Probe Test (FPT)

PCB Flying Probe Test (FPT)

Fully automatic exposure machine

Fully automatic exposure machine

KINGFORD
Why choose us?
24-hour customer service
24-hour customer service

we provide 24-hour service and support, you will receive a reply to your question within 2 hours and a quotation within 24 hours.

timely delivery
timely delivery

Own PCB factory of 50,000 square meters, the monthly output can reach 60,000 square meters, no minimum PCB order requirements

Free DFM service
Free DFM service

Before the official production of the PCB, we will conduct a free DFM review service and support free Allegro, Altium, Protel, PADS, OBD, Gerber and other formats.

Quality assurance
Quality assurance

We can provide you with high frequency, high TG, high CTI, buried blind via, aluminum based PCB manufacturing, the quality is fully compliant with IPC 610-D standard, testing and quality assurance

KINGFORD
Our PCB&PCBA Solutions
The company has successively cooperated with more than 3,000 high-tech R&D, manufacturing and service companies around the world, with technical solutions covering medical, industrial control, artificial intelligence, Internet of Things, automotive electronics, smart home and other fields.
KINGFORD
Rigid-flex PCB FAQ
1.What types of rigid-flex PCBs are there?

Rigid-flex printed circuit boards are mainly divided into three types, including single-sided rigid-flex PCB, double-sided rigid-flex PCB, and multi-layer rigid-flex PCB.

2.What are the steps in the rigid-flex PCB manufacturing process?
The rigid-flex PCB manufacturing process involves multiple steps including substrate preparation, circuit pattern generation, overlays, cutting flex, electrical testing, and verification.
3.What is rigid-flex PCB?

A rigid-flex PCB is a hybrid board that integrates components from a rigid board and a flex circuit. It offers several advantages, including improved reliability and reduced weight.
