Hybrid PCB Assembly
RFPD 5G Smallcell RU RFPD 5G Smallcell RU Boards

RFPD 5G Smallcell RU PCB Board assembly

Functionality: quad transmitters, quad receivers,

and dual observation receivers with 2 inputs each

 Bandwidth: 200 MHz receiver,

200 MHz large signal/ 450 MHz synthesis transmitter

,and 450 MHz observation receiver

Tuning range: 650 MHz to 6 GHz

Interface: 12 Gbps JESD204B/C 1

Power consumption: 5 W 2

Multichip LO phase synchronization

DFE features: Enhanced DPD / CLGC / CFR 3

Package: 14 ×14 BGA

1. Will update to 24.33Gbps in future release

2. For 25% Rx 75% Tx, 1x Orx on, 200 MHz/450 MHz/450MHz BW, 0 dB attenuation

3. Supported on ADRV9029 whICh is coming soon

Product Details Data Sheet

ADRV9009 vs ADRV9026 – Features & SpecifICation

Spec/FeatureADRV9008/9 ADRV9026
No. Tx/Rx/Orx2T2R1OR4T4R2OR
TDD/FDD Support

Single-chip TDD

 Two-chip FDD

Single Chip TDD & FDD
Frequency Range75MHz – 6GHz650MHz – 6GHz1
Rx/Tx/Orx Channel BW200MHz/450MHz/450MHz200MHz/450MHz/450MHz
Power Consumption1x0.5x

ADC/DAC Max Sampling Rate

2Gbps/1Gbps5Gbps/2.5Gbps
Interface 12Gbps JESD204B16Gbps JESD204B & JESD204C
SERDES Lane Count 4 lanes each direction4 lanes each direction
Supply Rails1.3V/1.8V/3.3V1.0V/1.3V/1.8V
Package 12x12 FC-BGA 12x12 FC-BGA
DFE FeaturesN/AIntegrated DPD & CFR (bypassable) for up  to 200MHz BW applications

RFPD 5G Smallcell RU PCB Board assembly

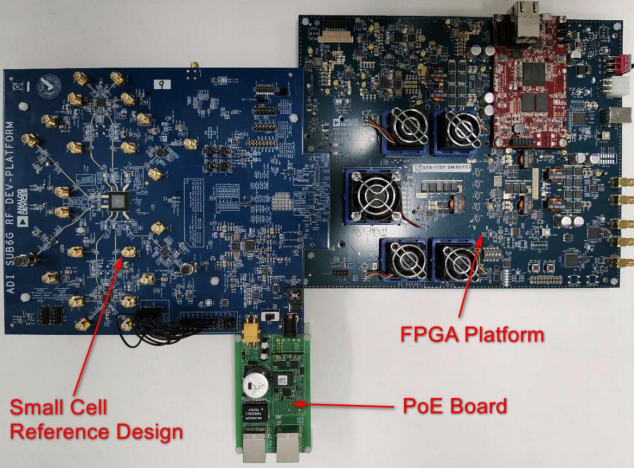

ADRV9029 reference design for SMAll cell

► On board RF reference design

▪ Add PA pre-driver stage HMC625B/ADL5611 to enable the reference platform can connect to PA EVB directly

▪ Add ADI RF Front end products ADRF5545A/ADRF5549 on RX channels, and switch products on ORx channels

▪ Make the board support middle/high RF bands SIMultaneously

► On board clock solution

▪ Use dual clock domains clock device AD9545

▪ Add SyncE capability needed for O-RAN

► On board power supply solution

▪ Use ADP5054 as the power supply for ADRV902x and clock devices

▪ Leave interface for external PoE EVB + ADI power brick supply

► Multiple FPGA platform supported

▪ Work with either ADS9 board or Intel Arria 10 board.

▪ Common GUI software and user interface

► DFE verification software supported

▪ Integrate the DPD / CFR / CLGC verification interface in GUI

ADRV9029 reference design for small cell


Functionality: quad transmitters, quad receivers,

and dual observation receivers with 2 inputs each

 Bandwidth: 200 MHz receiver,

200 MHz large signal/ 450 MHz synthesis transmitter

,and 450 MHz observation receiver

Tuning range: 650 MHz to 6 GHz

Interface: 12 Gbps JESD204B/C 1

Power consumption: 5 W 2

Multichip LO phase synchronization

DFE features: Enhanced DPD / CLGC / CFR 3

Package: 14 ×14 BGA

1. Will update to 24.33Gbps in future release

2. For 25% Rx 75% Tx, 1x Orx on, 200 MHz/450 MHz/450MHz BW, 0 dB attenuation

3. Supported on ADRV9029 whICh is coming soon
