How to reduce high frequency PCB wiring crosstalk problem?

When it comes to high frequency circuit wiring, the problem of high frequency signal crosstalk is a headache for PCB engineers. Shenzhen kingford is a professional engaged in electronic products PCB design (layout layout design) design company, next to introduce how to reduce high frequency PCB circuit wiring crosstalk problem.

Methods to reduce the crosstalk problem of high frequency PCB circuit wiring

Since the high-frequency signal is transmitted along the transmission line in the form of electromagnetic wave, the signal line will play the role of antenna, and the energy of electromagnetic field will be emitted around the transmission line. The unwanted noise signal generated between signals due to the mutual coupling of electromagnetic field is called crosstalk. In order to reduce the crosstalk of high-frequency signals, it is required to do as much as possible in the PCB design and wiring:

1. If the wiring space allows, insert a ground wire or ground plane between the two lines with more serious crosstalk, which can play the role of isolation and reduce crosstalk.

2. When electromagnetic fields exist in the space around the signal line, if parallel distribution cannot be avoided, a large area of "ground" can be arranged on the opposite side of the parallel signal line to greatly reduce interference.

3. If the wiring space permits, increase the spacing between adjacent signal lines, reduce the parallel length of signal lines, and try to make the clock line perpendicular to the key signal line.

4. If parallel cabling within the same floor is almost unavoidable, the direction of the two adjacent floors must be perpendicular to each other.

5. In PCB design, the clock line should be surrounded by the ground line and more ground holes should be made to reduce the distributed capacitance, thus reducing crosstalk.

6, high frequency signal clock try to use low voltage differential clock signal and packet mode.

7. Do not suspend the idle input terminal, but ground it or connect it to the power supply, because the suspended line may be equivalent to the transmitting antenna, grounding can inhibit the emission.

2. How does the SMT factory solve the problem of component shortage?

Even the best supply chain managers cannot completely insulate their PCBA processing operations from the impact of the current global shortage of electronic components. The simple fact is that there aren't enough components to go around, which means someone will have to give up their less urgent needs. More broadly, longer delivery times, missed deliveries and higher prices are inevitable. However, measures could be taken to minimize the problems caused by shortages.

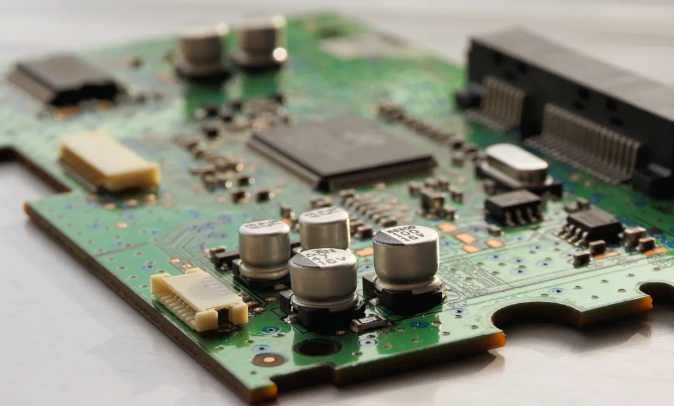

PCBA board
