Cause Analysis of Copper Free in a PCB Taper Hole
Jeff 0 Comments

Cause Analysis of Copper Free in a PCB Taper Hole

Hole metallization is the most important process in the PCB manufacturing process. This article will talk about some personal understanding and understanding about the appearance, causes and solutions of a gradually thinner type of hole without copper. The copper free pores of the gradually thinner type have a common feature, that is, the copper layer in the pores gradually thins from the hole mouth to the hole center until the copper layer disappears. The details are as follows:

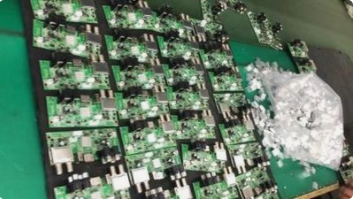

pcb board

1. Poor tin plating (displacement) ability of tin polish and poor tin calling;

2. PTH is abnormal and no copper is deposited in the hole;

3. The deep plating ability of copper plating is poor.

In actual PCB production, copper free tapered holes are common. The reason is that the conductive substrate (plate electroplated copper or thick copper layer) has an inhibitor layer that hinders copper electroplating. The generation and prevention of this coating are analyzed below.

During the next process of circuit development of PCB electric copper or heavy copper, the ink that is not cross-linked and polymerized on the circuit board surface is dissolved in the developing solution, and the developing solution containing ink macromolecules is sprayed to the PCB board surface and holes again by the circulating pump. At this time, if the subsequent pressure water washing (including water washing quality) is not enough to wash the residues of ink macromolecules on the PCB board and holes, Then the residual ink macromolecular compound will reverse stick on the hole wall to form a thin layer of barrier coating. The more it reaches the center of the hole, the worse the cleaning effect will be. The greater the probability of the barrier coating, especially the small holes. (The multi-stage washing of the developing section is just a process of continuously diluting the residue, so as to dilute the residue as much as possible.).

After understanding that the polymer anti adhesion coating is the culprit that causes the thin copper layer in the hole, the focus of the problem is to ensure the cleaning effect in the hole to remove the anti adhesion coating. Suiting the remedy to the case can cure the root cause.

In addition, the premise of dealing with practical problems is to face up to and respect the existing production conditions of customers, such as: lines and resistance welding, the dry film and wet film share the developer, and the water washing flow is subject to environmental restrictions.

Some customers had hoped that the micro etching amount of the enlarged drawing could remove the resistance coating in the hole, but unfortunately, it did not help. Instead, excessive micro etching caused no copper in the hole. The correct solution should be to strengthen the maintenance of the developing dry process, and select acid degreaser with excellent degreasing effect for the graphic and electrical pretreatment.

EC-51 acid degreaser can cooperate with customers to solve the problem of copper free in such holes where the copper is gradually thinner from the orifice to the center of the hole. The correct use of EC-51 acid degreaser requires the following precautions:

1. EC-51 requires slightly strict water washing, which requires sufficient water washing. The copper cylinder and nickel cylinder may have more foam because the wetting agent contained in it is not clean.

2. EC-51 is specially designed for wet film. Use wet film or black oil plate. If nickel or copper cannot be plated in the hole, it can be solved after EC-51 treatment. For thin wire pitch dry film, the amount of cylinder opening shall be appropriately reduced, and the content of EC-51 shall be controlled to 4% to prevent the excessive content of degreaser from attacking the dry film line edge and causing dog tooth shaped coating. In addition, EC-51 is also good for copper free dry film tapered holes.

3. Winter is a time of high incidence of such problems (due to low temperature and poor water washing performance). The most effective way to improve the oil removal effect is to increase the temperature (the increase in concentration contributes little, but also increases the water washing pressure). The temperature is generally controlled at 30-35 ℃. Too low temperature is not conducive to ensuring the oil removal effect; Too high temperature is prone to attack the ink with degreasing agent, which will lead to infiltration. In the manual line, the manual swing and filter shall also be used to ensure the penetration of the liquid medicine in the hole. If the customer's production conditions are bad, the cylinder change cycle of EC-51 should be shortened to 15-20 square feet/liter

This article is about the analysis of the reason why there is no copper in a PCB tapered hole in the PCB manufacturing process
