PCB Plating Thickness: Drawing and Inspection Guide

PCB plating thickness should be specified by function and measurement location, not as one ambiguous number. A fabrication drawing should separate finished conductor copper, plated through-hole copper and the surface-finish deposit, then state how each requirement will be verified.

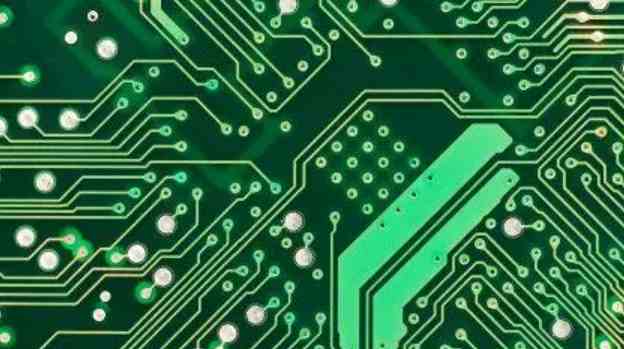

Copper plating process on printed circuit board production panels

What PCB plating thickness can mean

Three different requirements are often compressed into the phrase “plating thickness.” They are related, but they do not describe the same layer.

Requirement	Where it applies	What the drawing should state	Typical verification approach
Finished conductor copper	Traces, planes and pads after fabrication	Finished copper requirement by layer or layer group, including whether the value is nominal or minimum	Microsection, calibrated thickness measurement or another agreed method
Hole-wall copper	Plated through holes and via barrels	Minimum or acceptance requirement, applicable hole types and inspection location	Representative coupon or board microsection
Surface-finish deposit	Exposed solderable pads over the copper	Finish type, deposit requirement and governing specification or customer limit	Method appropriate to the finish, such as X-ray fluorescence where applicable

Base copper and deposited copper also need to be distinguished. On features that receive pattern plating, the finished conductor is the result of the starting foil plus the copper added during processing. The surface finish is a separate deposit applied over the finished copper; it should not be used as a substitute for a copper requirement.

Turn a design requirement into an inspectable drawing

A useful drawing connects the engineering reason to an unambiguous acceptance statement. Current capacity, thermal rise, controlled impedance, via reliability and solderability may point to different locations and measurement methods. One global value cannot reliably represent all of them.

For every thickness requirement, define these five items:

Layer or feature: name the outer layer, inner layer, plated hole, via type or exposed pad.
Condition: state whether the value refers to starting foil, deposited copper, finished copper or surface finish.
Limit: identify nominal, target, minimum or range instead of writing an unlabeled value.
Location: define the board area, coupon or representative feature used for acceptance.
Method and record: name the agreed inspection method and whether a report is required.

When a recognized specification applies, identify its exact revision, product class and any customer exceptions in the purchase documentation. Do not assume that an unspecified “standard thickness” will resolve design intent.

Measurement methods and their limits

A destructive microsection reveals a cross-section through conductors and plated holes. It is useful for evaluating hole-wall copper, interfaces and local geometry, but the sampling position must represent the features being accepted. A coupon can make the measurement repeatable, yet the coupon design and panel location still need agreement.

Non-destructive instruments can be suitable for selected exposed deposits or accessible copper surfaces. Their result depends on calibration, substrate, geometry and the deposit system. The RFQ should therefore request the method, sampling plan and report format rather than treat every instrument reading as interchangeable.

Process control is a separate layer of evidence. Bath chemistry, current distribution, panel loading and agitation influence deposited copper uniformity. The related article on factors affecting PCB electroplating explains those process variables; this guide focuses on the drawing and acceptance requirement.

Common specification conflicts to resolve before release

The stackup names a starting copper weight while the fabrication note names a finished thickness without saying so.
A general copper note conflicts with a controlled-impedance construction.
The via requirement is stated as finished hole size only, with no separate hole-wall copper criterion.
A surface-finish thickness is copied into the copper note even though the deposits serve different functions.
A minimum is requested, but the quotation assumes a nominal target with no tolerance or sampling plan.
The drawing cites a specification without revision, class or customer exceptions.

Resolve these conflicts before tooling. A fabricator may need to adjust starting foil, imaging compensation or plating allowance to meet the final geometry. Those adjustments should be reviewed against impedance, spacing and finished-hole requirements rather than made from a copper note in isolation.

PCB plating thickness RFQ checklist

Include the following information with the fabrication package:

Layer stackup with starting and finished copper clearly labeled.
Hole table identifying plated and non-plated holes, via types and finished sizes.
Separate acceptance requirements for conductor copper, hole-wall copper and surface finish.
Applicable specification revision, class and project-specific exceptions.
Controlled-impedance requirements and the approved construction or adjustment route.
Inspection method, coupon requirement, sampling plan and report expectations.
Any locations that require special review because of current density, thermal load or fine geometry.
