pcb board fast proofing industry proofing need how much cost
31Jan
Kim 0 Comments

pcb board fast proofing industry proofing need how much cost

No matter what industry, price, quality is a problem that all business owners are more concerned about, so in the pcb board proofing industry proofing how much cost, which one is better, the following Xiao bian to say in detail according to years of industry experience.

Here Xiao bian on the common single and double side pcb board quick proofing for quotation, pcb quick proofing is divided into special price board and non-special price board.

1, special price board standard: the board layer is single and double panel, the material is FR4, the size of the length and width within 10*10cm, the board thickness requirement is between 0.8-1.6mm, the process requirement is ordinary spray tin, the ink color is green oil and white characters, the quantity is within 10PCS, the minimum line width and line distance is 0.15mm/0.15mm, the minimum aperture is 0.3mm.

As long as meet the above special price of standard pcb board proofing prices are 50 yuan, no free shipping.



2, non-special price board standard: The board layer is single and double layer, the material is FR4, the size of the length or width has exceeded 10cm on one side, the board thickness is required to be between 0.8-1.6mm, the process is required to be ordinary tin spray, the ink color is green oil and white characters, the quantity is less than 10PCS, the minimum line width and line distance is 0.15mm/0.15mm, and the minimum aperture is 0.3mm.

As long as the length or width of any side is more than 10cm, the pcb board proofing fee should be executed according to the following. Engineering fee 50 yuan + board fee, such as the size is calculated according to 12*15cm, the unit price is 0.05 yuan/square centimeter, so it is 12(length)*15(width)*0.05(unit price)=9 yuan, and then 9 yuan (single price)*10PCS(quantity)=90 yuan, engineering fee 50 yuan + board fee 90 yuan =140 yuan, Then the pcb proofing cost of this type beyond the special price range is 140 yuan.

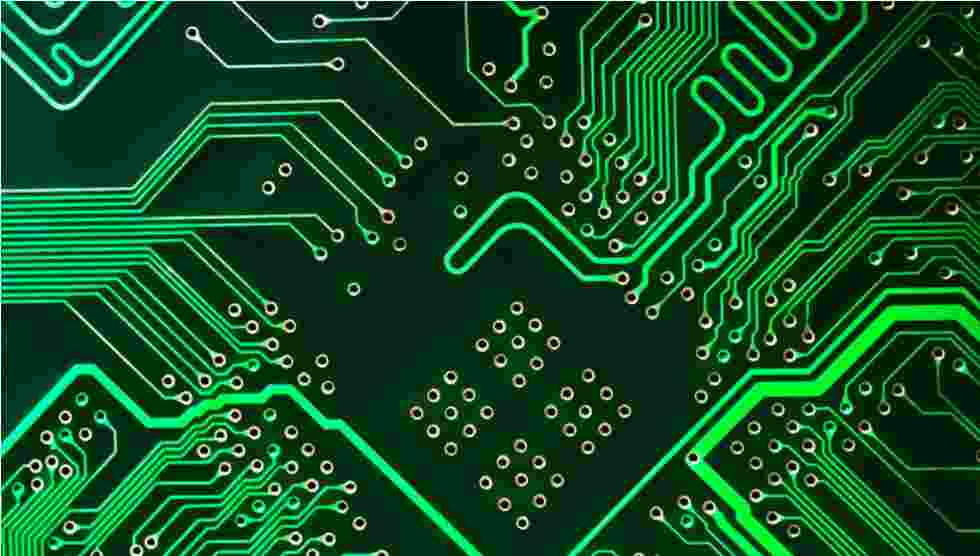

pcb

The above is the price of general delivery, quick proofing is divided into 8 hours of expedited charge, 12 hours of expedited shipment, 24 hours of expedited shipment, 48 hours of expedited shipment and so on. Different service prices are different, such as 24 hours expedited shipment, need allegro sample fee of 100 yuan, 48 hours expedited shipment, need allegro sample fee of 50 yuan. The total price also needs to depend on the number and area of the board, the specific need to communicate with customer service.

First look at quality

To see whether the PCB copper thickness is in line with the specification, whether the line is flat, the surface of the board is regular lubrication, copper foil adhesion is good enough, and so on, these are important factors to query the quality of the board. As long as the product quality is guaranteed, it means that the allegro factory is worth your choice.

Second, speed

Nowadays, many customers often have the need of urgent proofing, which puts forward higher requirements for the production power of PCB manufacturers. As long as the production power is qualified, you can ensure the delivery on time based on the supply of a variety of products expedited efficiency. For example, it has a supply of different length of single and double multilayer panels and other small batch efficiency, to ensure that the scheduled delivery.



Third, look at the effectiveness

The efficiency level mainly looks at the Allegro factory on the trial speed of orders, on the customer needs to take care of the needs and on the processing speed of customer problems. Assume the effectiveness of the state of mind, and has a rich order quantity, it shows that the manufacturer has to ensure the effectiveness of quality.

pcb board fast proofing recommended Chengdu circuit, first of all, our company uses high-end automatic equipment, eliminated the traditional old equipment. Not only to ensure the quality, but also to save labor, the company constantly adjust production capacity, on the new equipment, is to save more costs, the cost saved directly back to the customer. That's not something many other companies can do.

New high-end equipment, not only save labor, but also improve the quality of more than one grade. First of all, our company's raw materials all use high quality A-grade materials, Guizhou copper ball, Taiwan Changchun dry film, good raw materials to ensure good quality, secondly, all the products have passed AOI and flying needle test, quality assurance. Electroplating line all adopt the latest automation equipment, which not only increases the capacity but also improves the quality.

pcb board fast proofing circuit or very good, worth choosing.

The above is a small series of "pcb board fast proofing how much pcb board fast proofing which is good ", I hope to help you, if there is not clear, please contact our customer service for your answer.



pcb board quick proofing is generally charged according to the information provided by customers and process requirements. For example: the number of boards, process requirements, ink color, board thickness, difficulty, expediting time and so on, a comprehensive evaluation of the price. It is not a general how much it costs to make a pcb sample.



Here Xiao bian to single and double side common pcb board quick proofing for the price.

The board layer is single and double panel, the material is FR4, the size of length and width is less than 10*10cm, the board thickness is required to be between 0.8 and 1.6mm, the process is required to be ordinary tin spray, the ink color is green oil and white characters, the quantity is less than 10PCS, the minimum line width and line distance is 0.15mm/0.15mm, the minimum aperture is 0.3mm.

As long as the standard pcb board that meets the above special price board proofing price is 50 yuan, no free delivery, if you need urgent 24 hours, you need to charge another 100 yuan, if you need urgent 48 hours, another 50 yuan, if you need urgent 8 hours or 12 hours, please contact the following contact information.

Just upload Gerber files, BOM files and design files, and the KINGFORD team will provide a complete quotation within 24h.
