PCB design Layout Guide for engineers
09Feb
Kim 0 Comments

PCB design Layout Guide for engineers

Printed circuit board layout is much more than what it looks like. A successful PCB layout will allow its circuits to be physically arranged to achieve better electronic performance of the board while still being fully manufactured. This requires careful management of library components, CAD Settings and parameters, component placement, wiring, and power supply network (PDN) design. In addition, layout designers must ensure that their work is fully documented and that the final product is ready to be included in the main electronic system of their design.

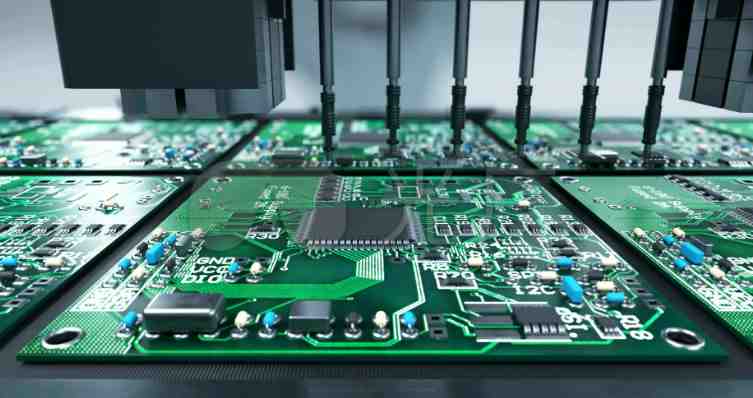

 pcb

This is a lot of work, especially for engineers unfamiliar with the PCB layout process. To help with this workflow, it is recommended to have a comprehensive set of board layout guidelines for reference. Industry and enterprise standards will dictate the details of the design, but layout guidelines are important to help engineers navigate the board development process from start to finish. Here are some basic PCB design layout guidelines that can be used to develop your own board development guidelines.



Before the layout begins

Before the layout process can begin, several tasks need to be handled to ensure a successful design, starting with the PCB encapsulation library to be used.



When building libraries for your PCB layout, it is important to use industry standards (such as IPC) or manufacturer specifications for package sizes and dimensions. However, individual, corporate, or technological needs may also determine some of the changes. For example, a package in an RF design may require a smaller pad size than a standard digital design. Here are some additional guidelines for building your own PCB component package:

Make sure that any library parts you build have acceptable pad pattern sizes that are spaced according to the standards for that part.

PCB packages need to contain all the necessary elements, such as part Outlines, silkscreen marks, and reference marks.

A good rule of thumb is to make sure your manufacturer can build the parts you are designing before submitting them to the final design.

Another option is to use PCB packaging from an external CAD library vendor. Parts manufacturers often pre-build their own components for your design system, and some tools have browsers to easily download these parts.

Circuit board outline and layer stack



Before starting the board layout, you need to work with a mechanical designer to get a good outline shape. Although the design's form factors can be changed later, any changes can force a substantial redesign of the circuit to accommodate the new shape. In addition, most CAD tools will accept data imported from mechanical design systems, making your life easier. However, even with the imported data, you still need to make sure that the board is outlined correctly and contains all the necessary CAD elements for your design, such as forbidden areas.



The board stacking should also be done before the layout begins. Again, these can be changed later, but the potential impact on existing circuits could disrupt your design schedule and budget. The board stacking should also be fine-tuned for your specific design to ensure that the correct layer configuration is provided for impedance control routing and other signal integrity requirements. It is also important to select the board material at this stage so that appropriate wire widths and other design calculations can be made based on the physical properties of the material. These characteristics include dielectric constant, insulation quality, moisture absorption rate and dissipation coefficient.



CAD parameters and Settings

It is not uncommon to find designers working with the default Settings that come with their CAD systems. However, most CAD systems provide the user with broad fan control over color, fill pattern, shading, and font size and width. You can also change the display of certain objects, place one design element over another, set the grid, and specify layout and wiring priorities. These Settings are designed to increase your productivity, and you can save time by taking the time up front to optimize the Settings.



Setting the display parameters of a CAD system is an important first step in PCB layout

Guidelines for placing PCB components

Once the CAD library, circuit board outline, and other setup tasks are complete, the design can begin to lay out. The first step in this process is to place the PCB component package on the board. Placing components on the board must meet three main requirements: circuit performance, manufacturability, and accessibility.



Circuit performance

High-speed circuits need to place their components as close together as possible to achieve short, direct signal paths, but they are not components that have this requirement. Analog circuits and power supply assemblies also need to be placed to make their sensitive or high-current lines as short as possible. This helps reduce inductance and improves signal and power integrity. However, in some cases, these components may need to be separated to accommodate bus wiring or thermal separation.



Manufacturability

To keep production costs as low as possible, it is important to place components in a way that is as easy to manufacture as possible. For example, components that are too close to each other may not be assembled automatically, or it may be difficult to use automatic welding processes. Wave soldering of taller chip components before smaller components creates a shadow effect, resulting in poor welded connections. Uneven copper between the two pads of a small chip assembly creates uneven heating, causing the solder in one pad to melt before the other and pulling the other side up away from the pad.



barrier-free

Boards often have to be manually tested and reworked, which requires access to the parts that need to be handled. If these parts are obscured by other larger components, it can make their work more time-consuming or cause collateral damage to adjacent parts. Likewise, connectors, switches, and other inaccessible human interfaces can slow down the manufacturing of boards.

An extremely important guideline is that the layout should start with a basic floor plan of the components on the development board. This will allow you to stratetize how to divide the different circuit areas on the board to avoid overlapping analog and digital signals.
