BGA Assembly
BGA Assembly

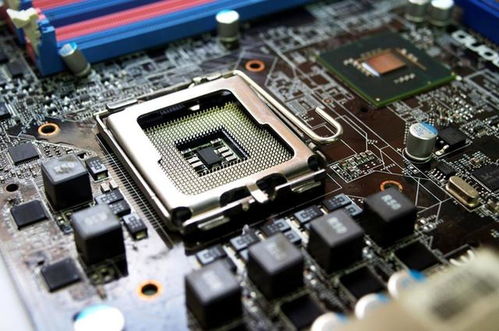

BGA industrial control motherboard assembly

BGA industrial control motherboard assembly

Name: BGA industrial control motherboard assembly

Number of SMT lines: 7 high-speed SMT patch supporting production lines

SMT daily production capacity: more than 30 million points

Testing Equipment: X-RAY Tester, First Piece Tester, AOI Automatic Optical Tester, ICT Tester, BGA Rework Station

Placement speed: CHIP component placement speed (at best conditions) 0.036 S/piece

The smallest package that can be attached: 0201, the accuracy can reach ±0.04mm

Minimum device accuracy: PLCC, QFP, BGA, CSP and other devices can be mounted, and the pin spacing can reach ±0.04mm

IC type patch accuracy: it has a high level for mounting ultra-thin PCB boards, flexible PCB boards, gold fingers, etc. Can be mounted/inserted/mixed TFT display driver board, mobile phone motherboard, battery protection circuit and other difficult products

Product Details Data Sheet

The industrial control motherboard is a motherboard used in industrial occasions. It is adopted by industrial computers. It can adapt to a wide temperature environment according to requirements, can adapt to harsh environments, and can work under high loads for a long time.


Fundamental contents

The so-called industrial control motherboard

①CPU can be a common plug-in type, or a part of it is a board-mounted type. The main reason is to see

②Memory slot is usually 1-2

③Integrated graphics card

④There are many I/O devices, but some motherboards will omit the printing port

⑤PCI slot is usually about 2-3

⑥Plate type is relatively small


The motherboard that really meets the industrial control standard is divided into two parts!


The first part is the "Industrial Control Motherboard" part! ! The function of this part is the same as the motherboard we use! ! However, the industrial control motherboard is designed as a card! It's like a giant graphics card! ! There are two rows of gold fingers on the bottom of the motherboard! However, this section does not contain any expansion slots!


The second part is the "Expansion Interface Board" part! There are several PCI and ISA slots on it! ! There is also a slot for connecting the "industrial control motherboard" !


During the actual installation, the "expansion interface board" is fixed on the bottom plate of the chassis! And the "industrial control motherboard" is plugged into the "expansion interface board"! However, this structure is helpful for adding multiple PCI or ISA devices.


Structure: Embedded PC/104 industrial motherboard

Processor: On-board NS GEODE GX1 CPU, main frequency 200/233/266/300/333MHz optional

Chipset: NS GEODE CS5530A

System memory: a notebook memory interface (144 PIN SO-DIMM)

BIOS: Award BIOS, plug and play

Display interface: Support CRT, 18bit TFT LCD, 4M shared memory.

The maximum VGA resolution is 1024×768×24bpp﹑1280×1024×8bpp;

LCD TFT maximum support 1024×768×18bpp

Enhanced IDE: Support standard hard disk and CD-ROM, can carry CF adapter card

Super I/O: Winbond W83977 chip, two serial ports, one parallel port, one keyboard/mouse interface, no floppy drive interface

Watchdog circuit: 16-level watchdog timer function, 1 second time interval, the time can be set to 0-15 seconds

Network: Realtek 8139DL 10M/100M network card

USB: 2-way USB1.1 interface

Power supply: +5V@1.4A (maximum), single power +5V power supply

Dimensions: 90.2mm×95.9mm

PCB board layers: 8 layers, strong anti-electromagnetic interference ability

Working environment: temperature 0°C to 60°C, relative humidity 5% to 95%, non-condensing

Anti-EMI design: serial port, parallel port, CRT interface, keyboard/mouse interface anti-EMI design

Serial port features: COM2 can be configured as RS232/RS485 without jumpers, and COM1 is standard RS232

Featured recommendation: High performance, PC/104 size Pentium MMX-class motherboard, with a network card, USB


Main applications: industrial control equipment, GPS navigation, sewage online monitoring, air online monitoring, instrumentation, professional equipment controllers, military industry, government agencies, telecommunications, banks, electric power, car LCD, monitor, video doorbell, portable DVD, LCD TV, environmental protection equipment, etc.


BGA industrial control motherboard assembly Characteristic

Working temperature and heat dissipation: Industrial control motherboards can work stably and without failure between -20°C~60°C, and even some industrial control motherboards adopt special wide temperature design, and the temperature range can reach -20°C~70°C. This is a severe test for the heat dissipation scheme and heat dissipation efficiency of the organization. In the heat dissipation design of the industrial control motherboard mechanism, an all-aluminum mechanism shell and a special heat dissipation design must be used, and special treatment must be carried out for large heat generating units such as the CPU, north and south bridges, and hard drives to ensure the normal operation of the industrial control motherboard and the whole machine.


Management: In addition to providing similar remote connection management, the industrial control motherboard can also realize remote unattended automatic power on and off. Through the embedded IPMB and SMNP-1000 modules, the management, recording, and transmission of real-time system operation information can be realized.


Protection function: Through special design, the industrial control motherboard can realize the functions of the automatic restart of the watchdog and anti-surge impact in case of abnormal conditions such as crashes, and fully guarantee the high stability of the system in harsh environments.

Market size: Industrial control motherboards are mainly customized products, with relatively small output and market size, and the cost of switching to other brands of motherboards is high. Therefore, users who choose industrial control motherboards generally do not easily switch to other brands.

111


Name: BGA industrial control motherboard assembly

Number of SMT lines: 7 high-speed SMT patch supporting production lines

SMT daily production capacity: more than 30 million points

Testing Equipment: X-RAY Tester, First Piece Tester, AOI Automatic Optical Tester, ICT Tester, BGA Rework Station

Placement speed: CHIP component placement speed (at best conditions) 0.036 S/piece

The smallest package that can be attached: 0201, the accuracy can reach ±0.04mm

Minimum device accuracy: PLCC, QFP, BGA, CSP and other devices can be mounted, and the pin spacing can reach ±0.04mm

IC type patch accuracy: it has a high level for mounting ultra-thin PCB boards, flexible PCB boards, gold fingers, etc. Can be mounted/inserted/mixed TFT display driver board, mobile phone motherboard, battery protection circuit and other difficult products

Just upload Gerber files, BOM files and design files, and the KINGFORD team will provide a complete quotation within 24h.
