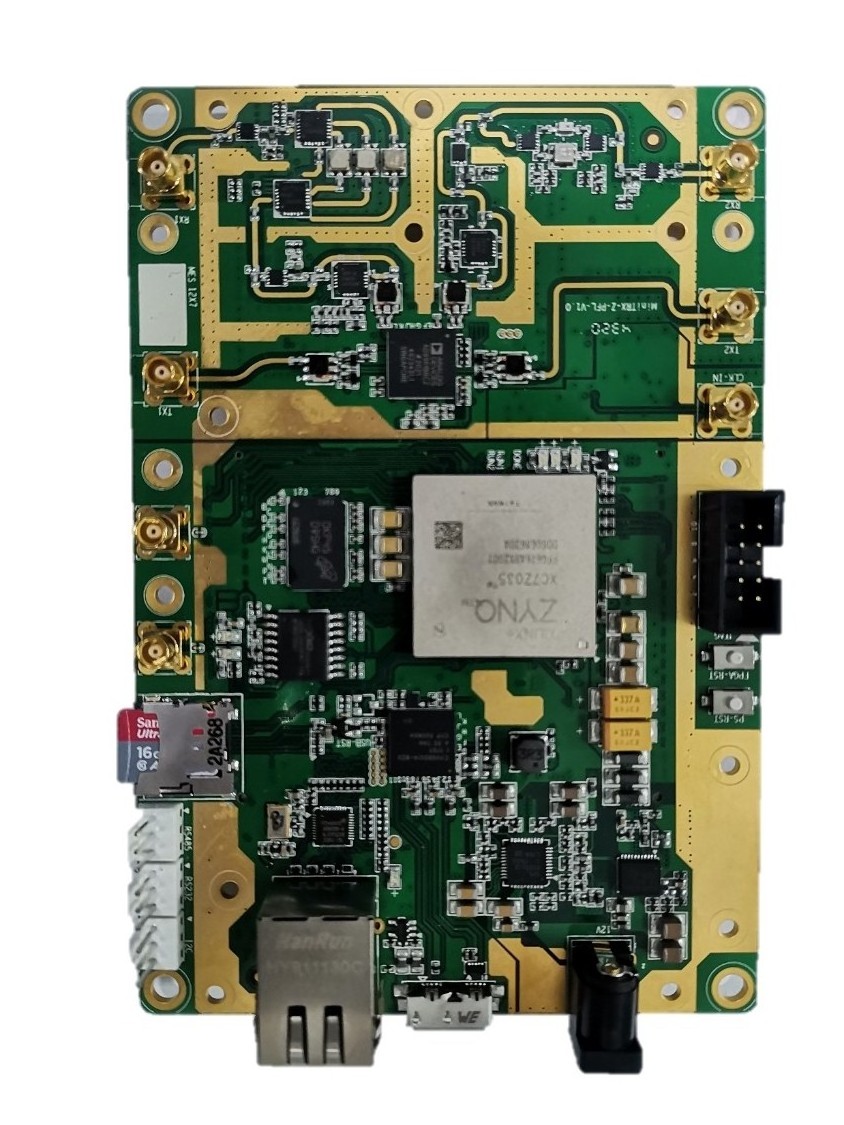

Medical Audio Motherboard Assembly Circuit PCB Board Multilayer PCB Assembly

Name:Medical Audio Motherboard Assembly Circuit PCB board multilayer pcb assembly

Product Type:PCB assembly

Min.Hole Size:0.12mm

Solder Mask Colour:Green, Blue, White, Black, Yellow, Red etc

Surface Finish:HASL, Enig, OSP, Gold Finger

Min Trace Width/Space:0.075/0.075mm

Copper ThICkness:1 - 12 Oz

Assembly Modes:SMT, DIP, Through Hole

Application Field:LED, Medical, Industrial, control board

Samples Run:Available

Transport Package:Vacuum Packing/Blister/Plastic /Cartoon

Specification:Customized

TradeMARK:OEM / ODM

Origin:China

Production Capacity:50000pieces Per Month

Product Details Data Sheet

Product Details

Key Features

  - FPGA:Xilinx Zynq XC7Z035-2FFG676I

  - DDR:512MB DDR3
  - FLASH:256Mb QSPI
  - SD:MICroSD
  - Ethernet:10/100/1000M
  - USB:USB3.0
  - Communication Interface:RS232/RS422/I2C
  - Sensor:Humidity Sensor with Integrated Temperature
  - User Interface:GPIO
  - Rx LNA range:70MHz~6GHz
  - RF Digital Step Attenuator(DSA):0~31.5dB attenuation range in 0.5dB steps(1MHz to 4GHz)
  - Bypass LNA and DSA to support Rx:70MHz~6.0GHz
  - Size: 140mm*95mm
  - Analog Devices AD9361-BBCZ Integrated RF Agile Transceiver™
    RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
    Band: 70 MHz to 6.0 GHz
    TDD and FDD operation
    Tunable channel BW:<200 kHz to 56 MHz
    Supports MIMO radio: < 1 sample sync on both ADC and DAC
    Miniature RF connectors &ndash; 4 TX, 4 RX, 2 TX monitor
Figure2 - SIMplified Block Diagram


  MiniTRX-Z Getting Started design


  The Getting Started design implements the data interfaces to/from the AD9361 RF transceiver through which baseband signals are mixed to RF for over-the-air loopback from transmitter to receiver. Data path and control signals between the AD9361 and Zynq SoC are shown in Figure3.
  -  MiniTRX-Z No-OS Software: based on ADI&rsquo;s AD9361 No-OS API Branch 2017_R1


1578279263656124.jpg Figure3 - HDL Reference Design

  MiniTRX-Z Interface



     We provide Medical Audio Motherboard Assembly Circuit PCB board Multilayer  Assembly services. Kingford is your one stop turnkey pcb assembly factory. Looking forward to your inquiry.


Name:Medical Audio Motherboard Assembly Circuit PCB board multilayer pcb assembly

Product Type:PCB assembly

Min.Hole Size:0.12mm

Solder Mask Colour:Green, Blue, White, Black, Yellow, Red etc

Surface Finish:HASL, Enig, OSP, Gold Finger

Min Trace Width/Space:0.075/0.075mm

Copper ThICkness:1 - 12 Oz

Assembly Modes:SMT, DIP, Through Hole

Application Field:LED, Medical, Industrial, control board

Samples Run:Available

Transport Package:Vacuum Packing/Blister/Plastic /Cartoon

Specification:Customized

TradeMARK:OEM / ODM

Origin:China

Production Capacity:50000pieces Per Month
