Single-sided PCB assembly

Quick Turn PCB PCBA for Medical equipment

Name：Medical equipment PCB assembly

Condition：New

PCBA-Testing：X-ray, Aoi

Small Order：Acceptable

Type：Rigid Circuit Board

Flame Retardant Properties：V0

Processing Technology：Electrolytic Foil

Insulation Materials：Organic Resin

Material：Complex

Transport Package：Antistatic Package+Plastic Box and Carton Box

Trademark：Customized

Origin：Shenzhen China

Production Capacity：100K/Month

Inquiry Get instant quote

Product Details Data Sheet

Product Description

ISO13485 and IATF16949 Shenzhen Electronics Factory PCBA and Box Build EMS Service
Shenzhen Kingford Technology Co., Ltd,we have more than 15 years' experience in PCBA contract manufacturing, professionally providing SMT, DIP, MI, AI, PCB assembling, conformal coating, final product assembling, testing, material procurement ,and one stop services such as wire harness, sheetmetal , plastic injection to make up complete product for customers. Our factory has a number of lines of SMT, assembly and testing, well-equipped with brand-newly imported Juki and Samsung SMT machine, full-automatic solder paste printing machine, ten temperature zone reflow oven and wave-soldering oven. Our factory is also equipped with AOI, XRAY, SPI, ICT, full-automatic splitting machine, BGA rework station and conformal coating machine, with air conditioner and dust-free workshop and lead-free manufacturing process. We have passed ISO9001:2015 international quality management system, IATF16949:2016 automotive industry quality management system and ISO13485:2016 medical device quality management system.

ISO13485 and IATF16949 Shenzhen Electronics Factory PCBA and Box Build EMS Service

Our PCBA and products are widely used in industrial control, medical device, food equipment, laser module, communication device, PLC module, transducer module, traffic control, automobile, smart home system, smart POS. We cooperate with worldwide clients and have long-term cooperated customers in USA, Canada, Germany,UK, Germany, Switzerland, Australia etc. which can be your reference.

ISO13485 and IATF16949 Shenzhen Electronics Factory PCBA and Box Build EMS Service

Our advantages

Superior Quality

ISO9001 certified company, We have a very robust quality system and professional quality team;
Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world, such as Xilinx, TI, Avnet, Future and etc;
High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;

We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging.

Fast Turnaround

We offer fast and opened BOM quotation to customers;

10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements.

Turnkey Service

We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support, etc;
Our factory is located in Shenzhen, and besides we have warehouses in Hongkong, Europe and North America. We can prepare boards at the warehouse which is close to the customer and afford Kanban service according to customer requirements.

IP Protection

Strong believe in IP protection with proven records

Our SMT&DIP machines list:

No	Machine name	Machine Type	Qty	Manufacture	Capacity	Remarks
1	(GKG) Auto. Printing machine	GKG-G5	3	GKG	Cycle Time:<15s	Plate size:420520mm-737737mm Size of printable board:5050mm-400310mm Printing Accuracy:±0.025mm Repeated Accuracy:±0.01mm
2	(SAMSUNG/JUKI) Placement machine	SM481	2	SAMSUNG	Placement speed: 39000 CPH	Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)40mm(W) Max Size of board:740mm(L)400mm(W)(Standard)
		SM482	1	SAMSUNG	Placement speed: 28000 CPH	Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)40mm(W) Max Size of board:740mm(L)400mm(W)(Standard)
		SM421	1	SAMSUNG	Placement speed: 21000 CPH	Corresponding element:0201-55mmIC(H 15mm) Placement accuracy:Chip±0.05mm,QFP±0.03mm Min Size of board:50mm(L)40mm(W) Max Size of board:740mm(L)400mm(W)(Standard)
		KE-3020AL	1	JUKI	Placement speed: 17100 CPH	Corresponding element:0201-50mmIC(H 20mm) Placement accuracy:Chip±0.04mm,QFP±0.04mm Corresponding PCB Size:Min:40mm(L)40mm(W) Max:650mm(L)360mm(W)
		KE-3010AL	1	JUKI	Placement speed: 18500 CPH	Corresponding element:0201-33mmIC(H 12mm) Placement accuracy:Chip±0.04mm,QFP±0.04mm Corresponding PCB Size:Min:40mm(L)40mm(W) Max:650mm(L)360mm(W)
3	(JT) Reflow oven machine	JTR-1000	1	JT	650-800mm/minute	Number of zone:10 Zones Temperature accuracy: +/-1ºC
		AS-1000	1	JT	650-800mm/minute	Number of zone:10 Zones Temperature accuracy: +/-1ºC
		NS-1000-N	1	JT	650-800mm/minute	Number of zone:10 Zones Temperature accuracy: +/-1ºC

4	(SAMSUNG) IC cabinet	STF100S	1	HengKai	22 kinds of materials

5	AOI (JT)	JTA-300	1	JT	20000 Components/H	Color image matching Resolution:Standard 20um/pixel, Viewable range:4433mm/3224mm Speed:0.25 sec/FOV
		ALD515	1	Aleader	20000 Components/H	Color image matching Resolution:Standard 20um/pixel, Viewable range:4433mm/3224mm Speed:0.25 sec/FOV

6	(JY) IC bake machine	100	1	Jingyi	Inside size L=600MM, W=500MM, H=1000MM	Temperature range:0-250(ºC)

7	BGA(LK) BGA Rework machine	LK-T6	1	LK	Maximum hot air temperature: 400 °C High-precision temperature controller, temperature error of 1 °	Size:69CM55CM48CM Welding success rate of up to 98%

8	(SUNEAST) Wave soldering machine	FM-350	1	SUNEAST	Transmission speed: 500~1800mm/Min.	Board size: 50~350mm(W)*120mm(H) Board height: 750±20mm Preheating temperature: Max.200°C Tin furnace temperature: Max.300°C

9	X-Ray(Scienscope)	View X1800	1	Scienscope	Image speed (fps):30 Detection range (cm2):0.05-30	X-ray tube type:Transmissive closed tube Spatial resolution (um):5 Tube voltage (KV):90 (optional 100) Tube current (uA):256 Magnification:500X
10	Conformal Coating machine (ANDA)	iCoat-3	1	ANDA	speed:Max 800mm/S	Repeated positioning accuracy:±0.02mm

Some SMT&DIP machines and Inspection machines

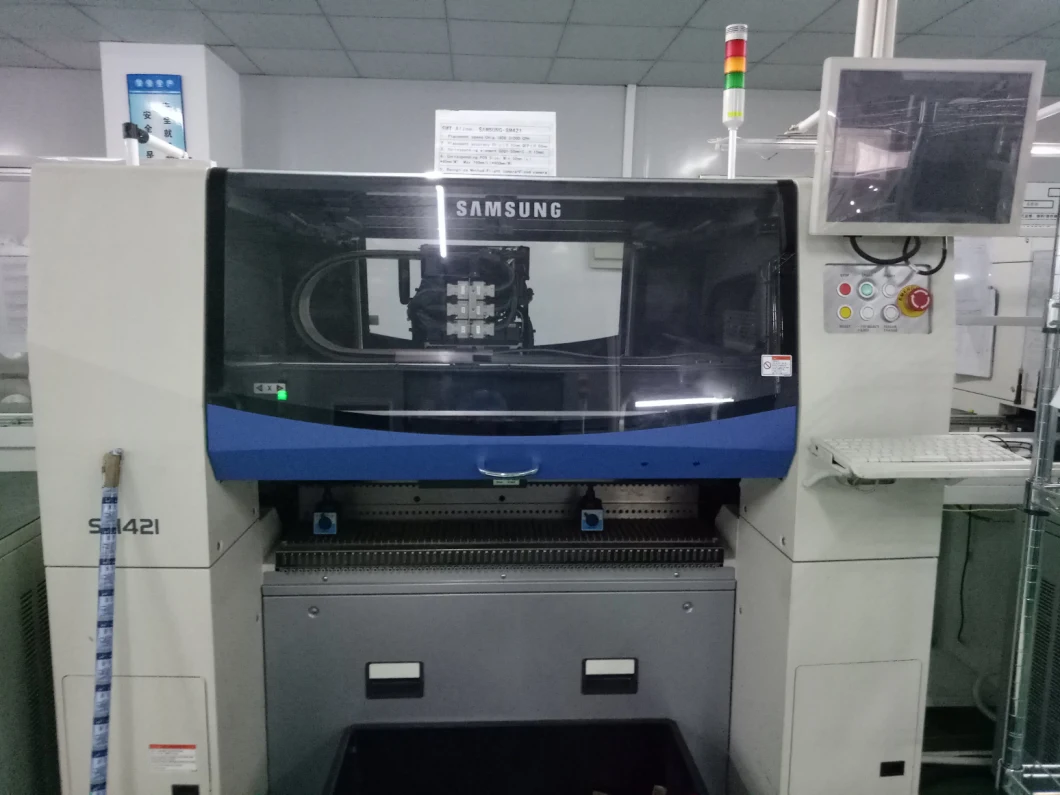

SMT-SM481&SM421
ISO13485 and IATF16949 Shenzhen Electronics Factory PCBA and Box Build EMS Service

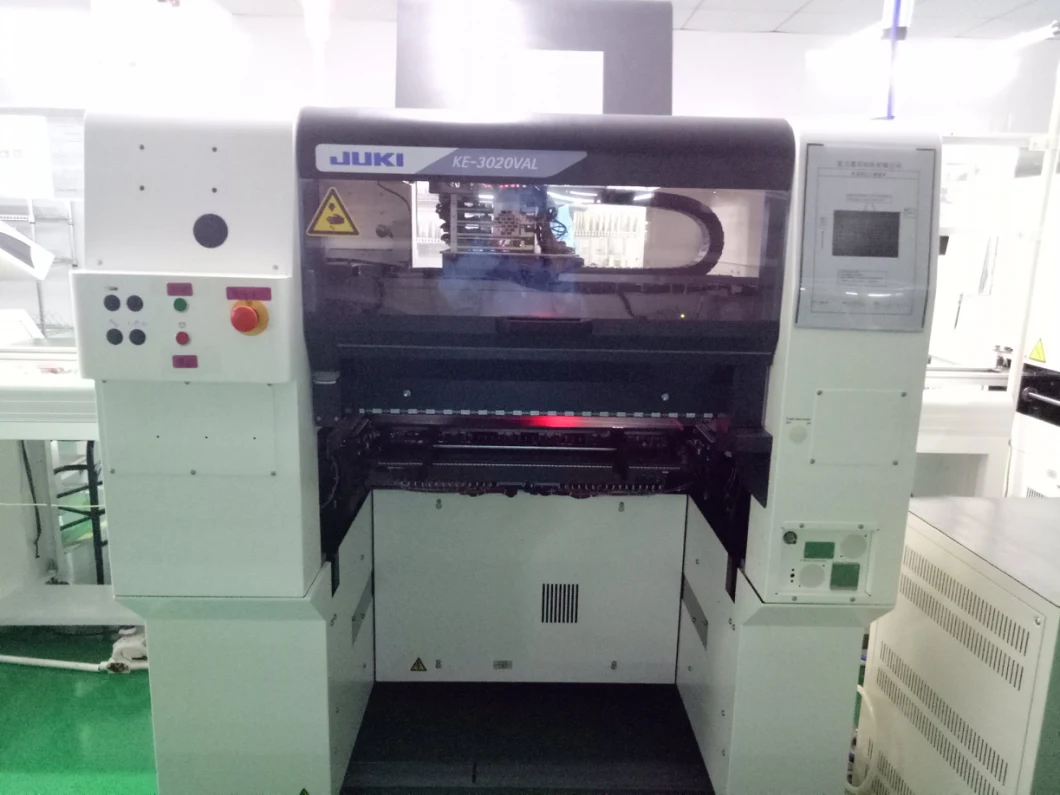

SMT-JUKI3020&JUKI3010

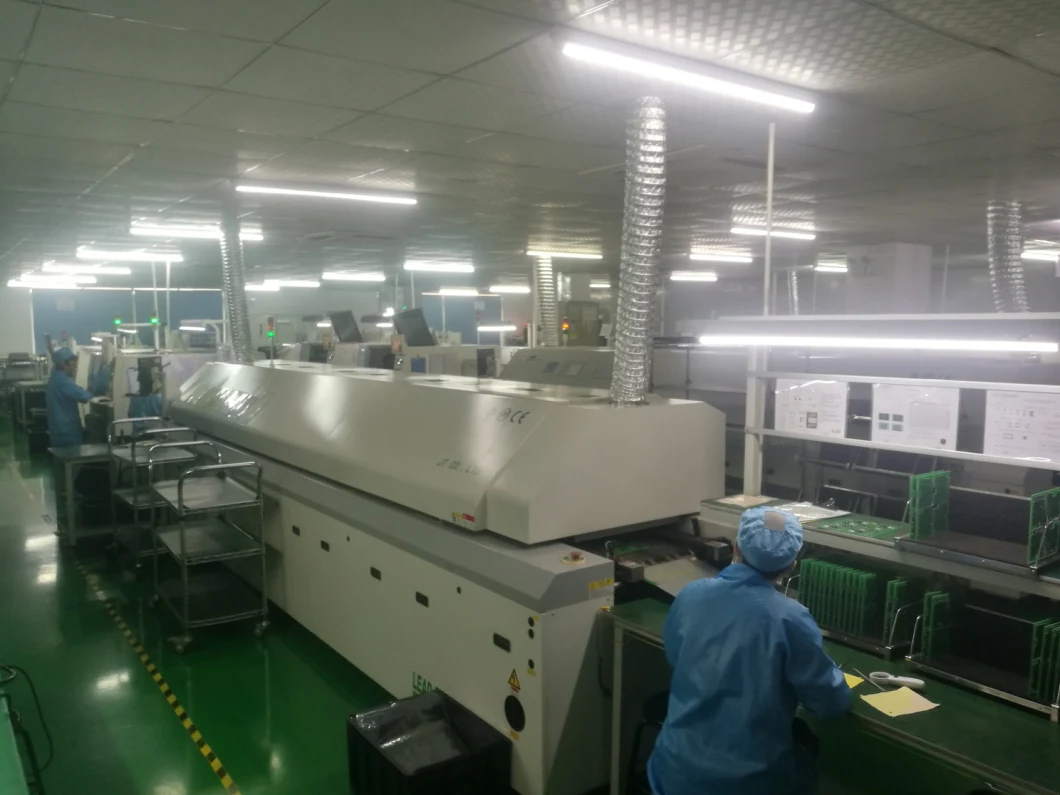

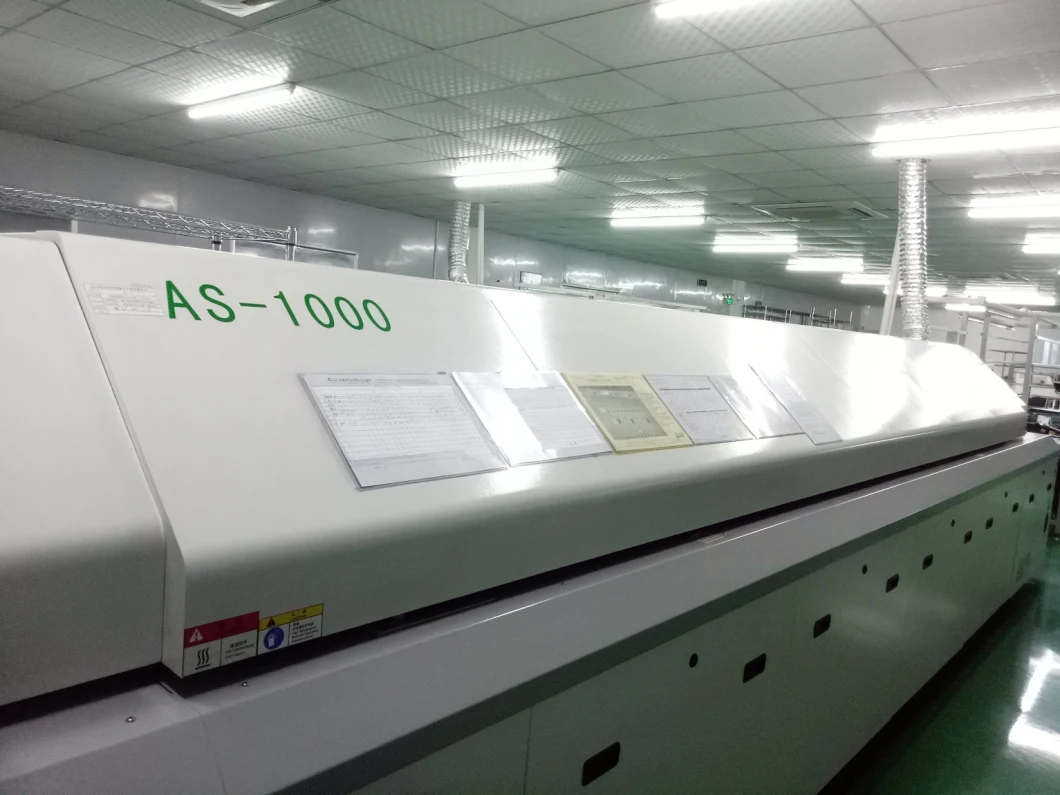

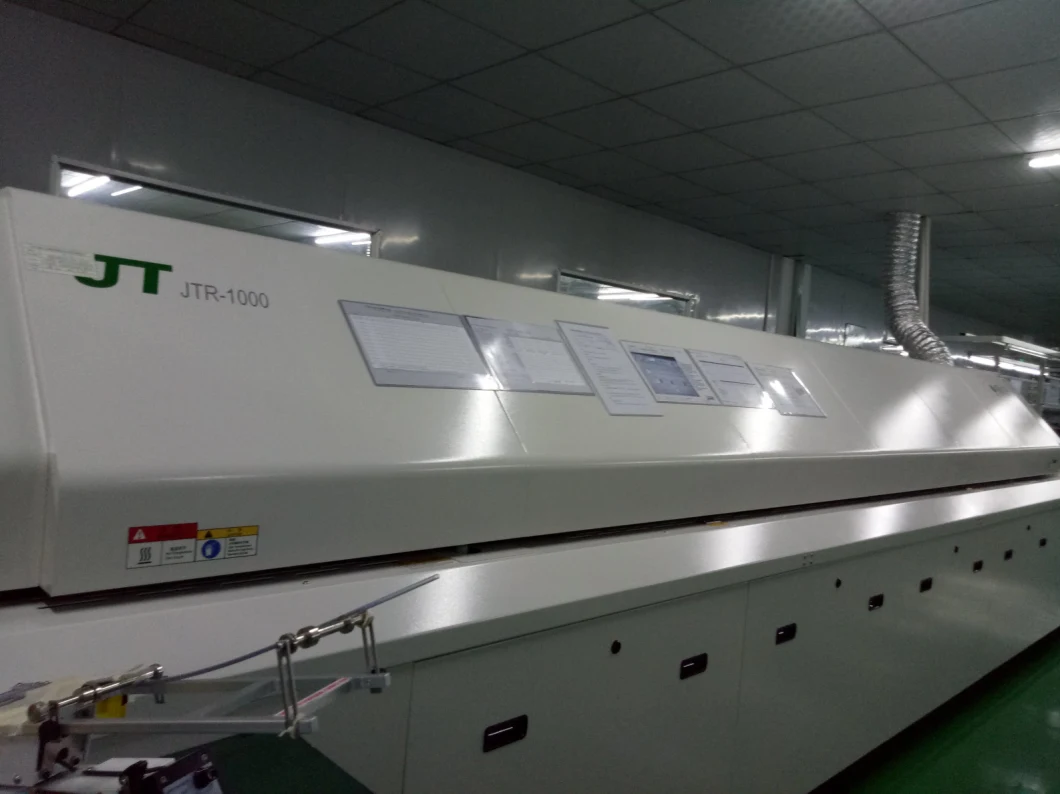

Reflow machine-JTR1000 & AS-1000

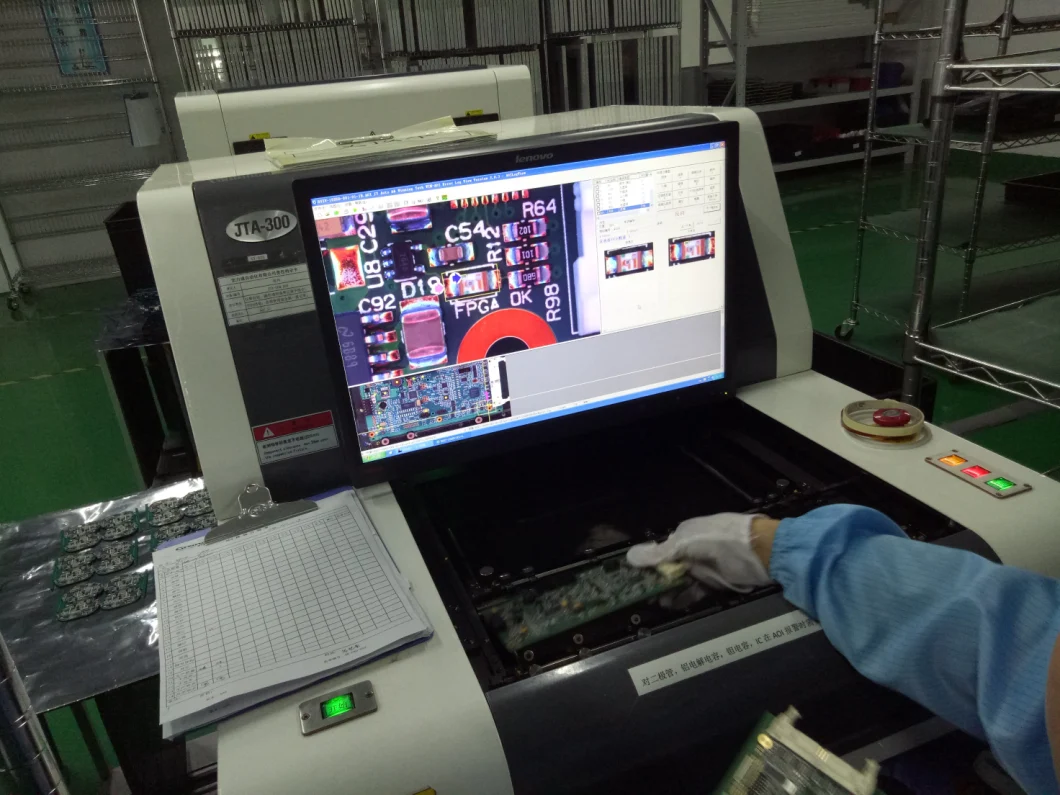

AOI-Aleader:

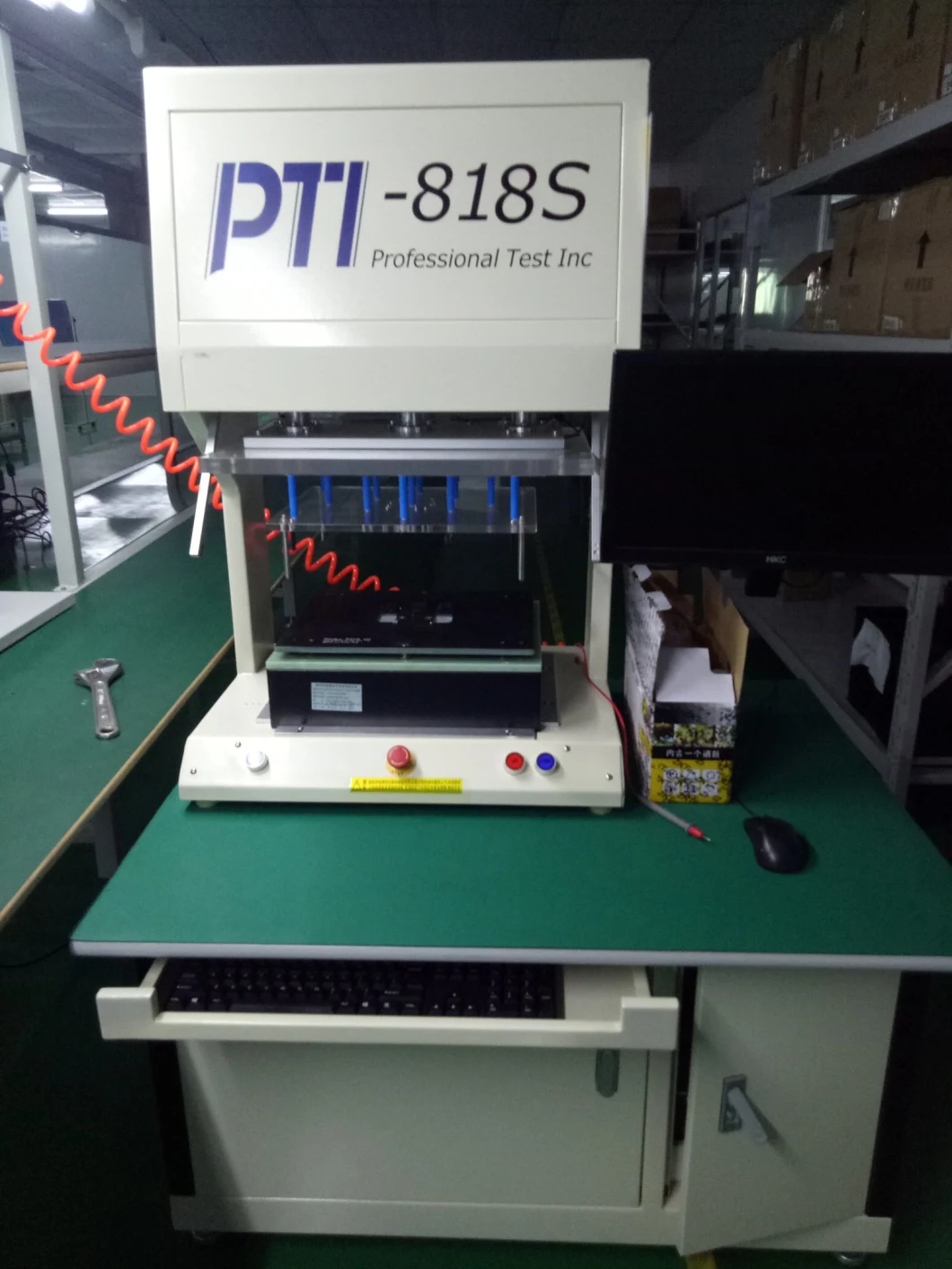

ICT-PTI 818S:

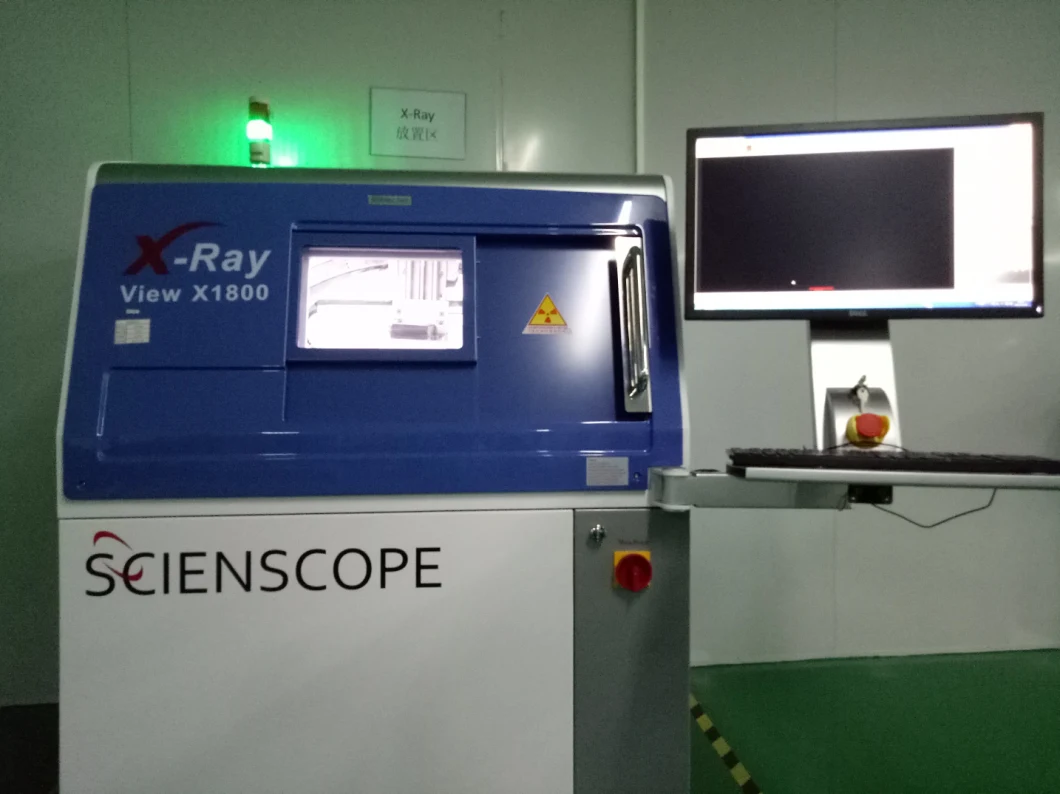

X-ray 1800
